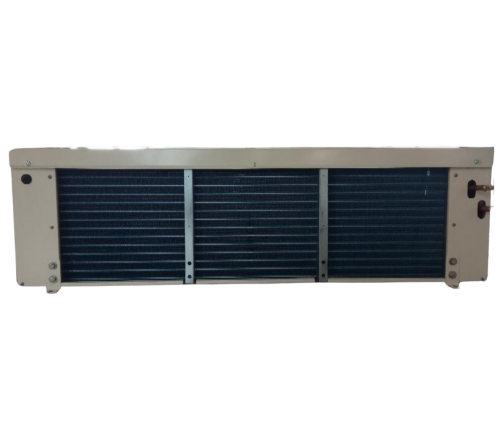

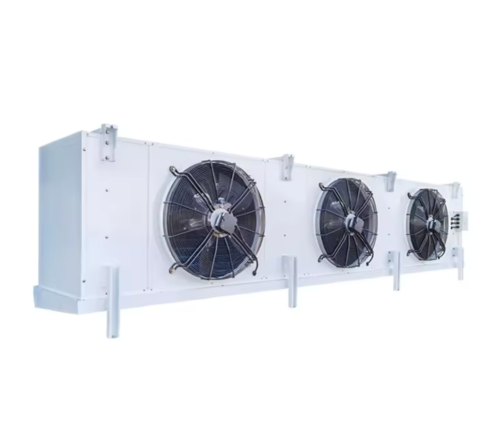

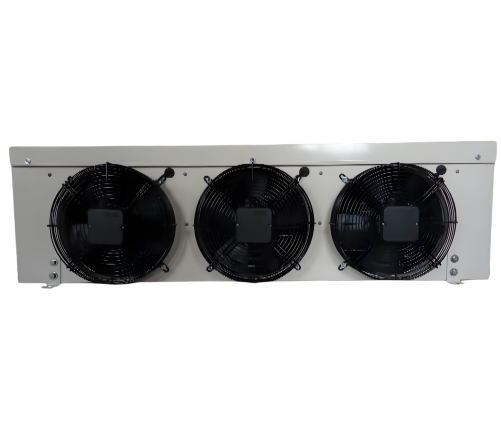

Napoleon 10.0kW Cold Room Evaporator

Model: NAP-CRE-100-3F

Quick Specifications
Capacity: 10.0 kW
Fans: 3 fans
Temperature: 0-5°C
Room Size: 35-60m³
Key Highlights
  • High-capacity 3-fan design for large cold rooms
  • Extended 1143mm copper coil for maximum efficiency
  • Superior airflow distribution with 3-fan configuration
  • Handles rooms up to 60m³ capacity
  • Express Cooling at 50°C
  • Perfect for restaurants, warehouses, and large storage

Detailed Specifications

Model NAP-CRE-100-3F
Capacity 10.0 kW
Temperature Range 0–5°C
Applications Restaurant, Warehouse, Large Storage
Coil Length 1143mm
Coil Material 3/8" Copper
Fin Density 6 FPI Aluminum
Number of Fans 3 fans
Fan Speed 1380 RPM
Airflow 1750m³/h
Power Consumption 1.26A
Unit Dimensions 1388×353×415mm
Weight 40kg
Packaging Size 1450×400×450mm
Installation Ceiling Mount
Drain Connection ¾" BSP
