Cold Room Evaporator Models

2 FAN MODEL

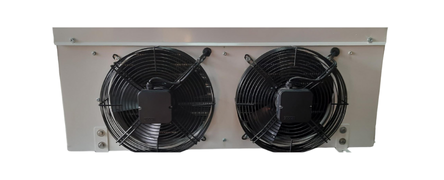

2-Fan Evaporator Unit
NAP-CRE-60-2F
6.0 kW
Temperature: 0-5ºC
Fans: 2 fans
Weight: 31.2kg
Coil Length: 762mm
Dimensions: 1023×353×415mm
Airflow: 1750m³/h
Power: 0.84A
Room Size: 20-35m²
View Details
3 FAN

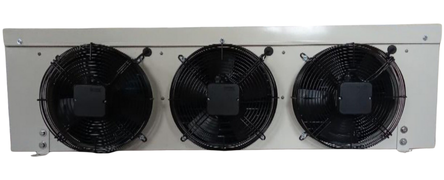

3-Fan Evaporator Unit
NAP-CRE-100-3F
10.0 kW
Temperature: 0-5ºC
Fans: 3 fans
Weight: 40kg
Coil Length: 1143mm
Dimensions: 1388×353×415mm
Airflow: 1750m³/h
Power: 1.26A
Room Size: 35-60m²
View Details
C

Copper Coils

High-quality 3/8" copper coils for superior heat transfer and long-lasting performance in commercial applications.

A

Aluminum Fins

6 FPI aluminum fins provide optimal heat exchange efficiency while maintaining corrosion resistance.

F

Axial Fans

High-performance axial fans deliver consistent 1750m³/h airflow at 1380 RPM for even temperature distribution.

M

Ceiling Mount

Space-saving ceiling mount design maximizes floor space while ensuring optimal air circulation patterns.

R

Corrosion Resistant

Durable construction with corrosion-resistant materials ensures reliable operation in demanding environments.

E

Easy Maintenance

Accessible design with removable panels and standard drain connections for simplified maintenance procedures.
