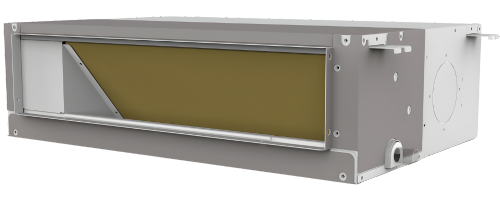

Napoleon 3.0 TR Mid Static Ducted AC

Napoleon 3.0 TR Mid Static Ducted AC delivers powerful cooling, quiet operation, energy efficiency, and uniform air distribution for commercial spaces.

Product Category : Ducted Air Conditioners

Available In : 3.0 TR , 4.0 TR

Model Specification

Specification	Details
Model Name	MD36 / A28 (Fixed Speed)
Performance
Cooling Capacity (W)	10600
Actual Capacity (TR)	3.0
Power Consumption (W)	3613
Current (A)	16.1
ISEER	2.93
External Static Pressure (Pa)	20
BEE Compliance	Yes
Star Rating	NA
Electrical Data
Voltage (V/Phase/Freq)	230/1PH/50Hz
Supply From	Outdoor Driven
IDU Controller
Model	MKM
Indoor Fan Motor
Make/Model	PICL, PE-11212
Type	AC
Power (Output) (W)	160
Speed (Hi/Mi/Lo) (RPM)	1070/950/870
Evaporator
Row (nos)	3
Tube Dia (mm)	7
Hair Pins (nos)	21
Dimension (W×D×H) (mm)	1091×294×38.1
Fin Colour	Blue
Indoor Air Flow
CMH	2000 (High)
Indoor Noise (H/M/L)
dBA	53
IDU Dimension
Net Dim (W×D×H) (mm)	1218×629×315
Packing Dim (W×D×H) (mm)	1482×767×373
Net / Gross Weight (kg)	40/46
Compressor
Make	GMCC
Model	KTQ375V1UMU
Outdoor Fan Motor
Make	PICL, PE - 12120
Type	AC
Power (W)	180
Capacitor (mfd)	10
Speed (RPM)	1150
ODU Fan
Description	20.7" / 3 Blades (SAN 20% GF + 4% Rubber)
Condenser
Row (nos)	2
HP (nos)	34
Dimension (W×D×H) (mm)	950×25.4×714
Fin Colour	Blue
ODU Controller
Status	NA
Outdoor Noise Level Rated
dBA	68
ODU Dimension
Net Dim (W×D×H) (mm)	987×382×752
Packing Dim (W×D×H) (mm)	1075×450×822
Net / Gross Weight (kg)	58/64
Refrigerant
Type	R-32
Qty (gm)	1600
Connecting Pipe
Liquid & Gas Side Dia	3/8" , 5/8"
Maximum Length (m)	30m
Maximum Elevation (m)	15m
